Excellent Heat Insulation
Excellent Heat Insulation
GRP panels protect water condensation in the tank and minimizes temperature variation of the stored water to prevent dewdrops phenomenon.
The 3 layer heat insulation panel minimize the heat losses and maintain its contents in its original form.

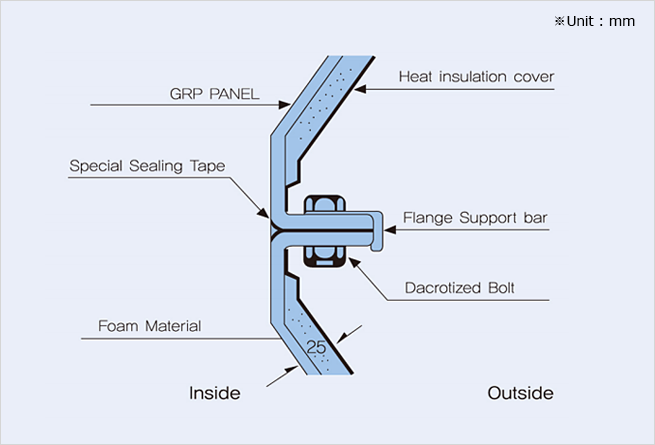

Drawing of the panel joint part

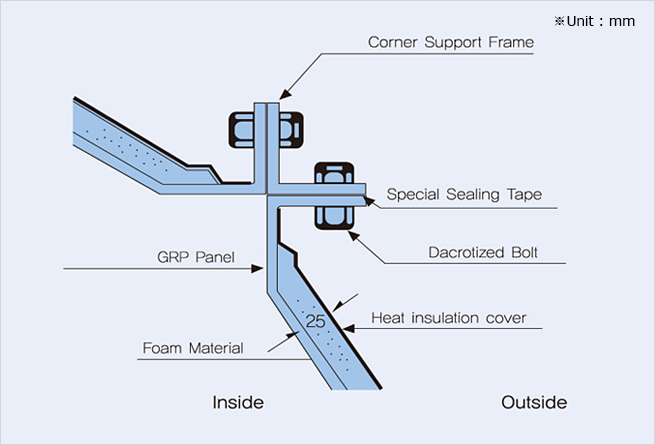

Drawing of the Corner part

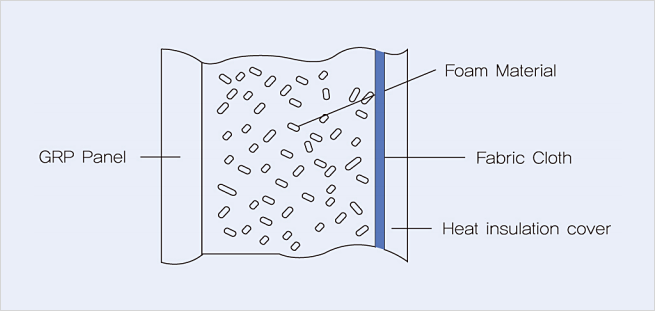

The heat insulation panel with 3 layer structured filled with Poly-Urethane foam shows its best performance.

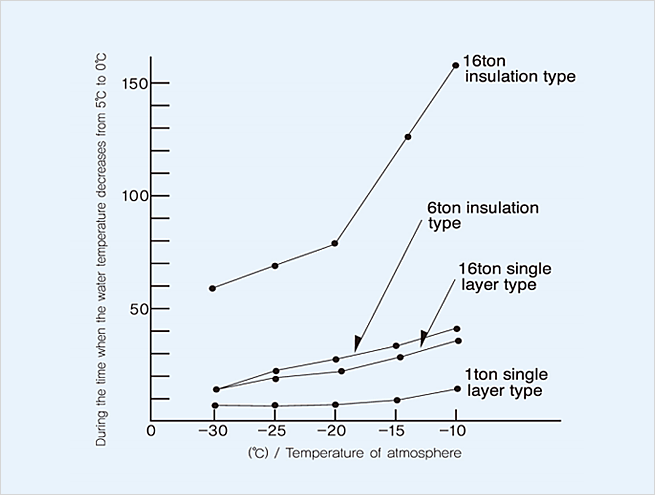

During the time when the water temperature decreases from 5˚ to 0˚
| Section | Design | Temperature of Atmosphere | ||
|---|---|---|---|---|
| -10℃ | -20℃ | -30℃ | ||
| 16tons | Single Layer Type | 35 | 20 | 13.5 |
| Insulation Type | 164 | 81 | 58.5 | |
| 1tons | Single Layer Type | 11 | 6 | 4 |
| Insulation Type | 37.5 | 23 | 13.5 | |
* Unit : Hour
* Test condition
a. Tank is filled with water
b. No further water supply, or drainage during the test

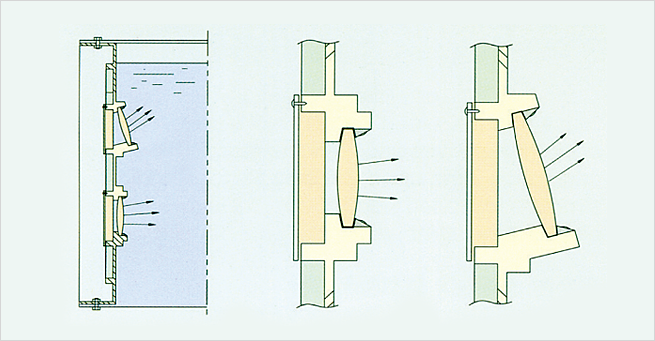

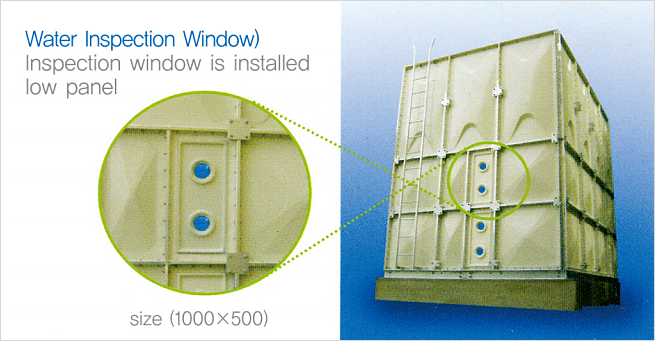

Optional Water Inspection Wind
Developed for easy water condition check from outside of Sectional GRP water tank by not using ladder.
