Partition Type Water Tank

It is possible to eliminate unusable space, and utilize the maximum space, by installing a partition type tank. Economical and effective for maintenance.

Special feature

• Utilizing maximum capacity

  In the basement or other confined areas, it is possible to eliminate unusable space, and utilize the maximum space, by installing a partition type tank.

• Various uses

  If partition type tanks are installed, one section can be used for drinking water, and the other section for service water (fire fighting).

• Easy Maintenance

  It is convenient for maintenance, because two tanks can be installed as one unit.

• Cost effectiveness

  The cost and installation of 1 partition tank is cheaper than 2 separate tanks.

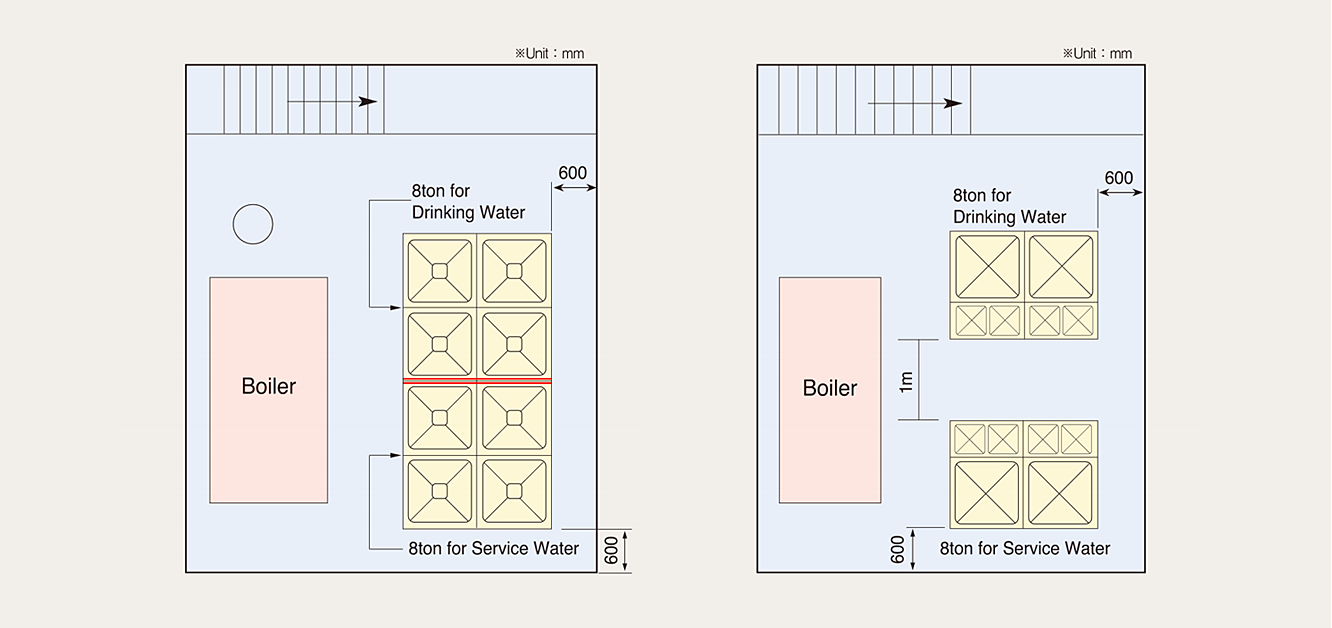

Example for Installation of A PARTITION TANK

If tanks for two different uses are needed in a confined area or boiler room, a 16 ton partition type tank can be installed to use half for drinking water, and half for service water. If separate tanks are installed, however, you have to installed two tanks with a maximum of 6 tons, because you need to have 1 meter distance between tanks for maintenance and operating space.

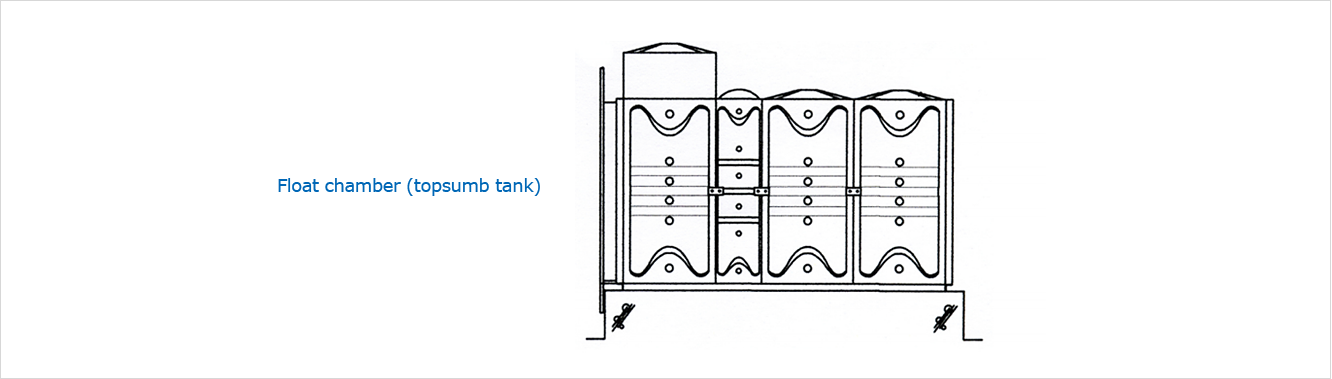

Partition Installation

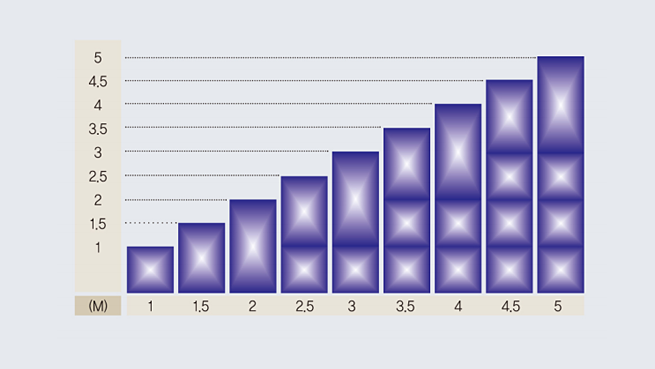

Effective Space Utilization

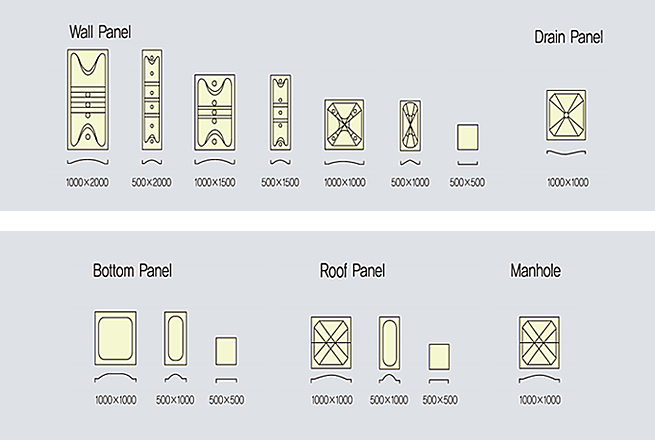

SAMSUNG Sectional GRP Tank utilize space effectively and efficiently with several type and size panels.
